Elite Acoustics was founded over 10 years ago in the USA and is now based in Los Angeles, California. The manufacturer is now represented worldwide and develops live electronics such as portable mixers, high-quality preamps, accessories for pedalboards and really good and multifunctional amplifiers for acoustic guitars. We are pleased to be able to offer Elite Acoustics acoustic amplifiers as part of our product range.

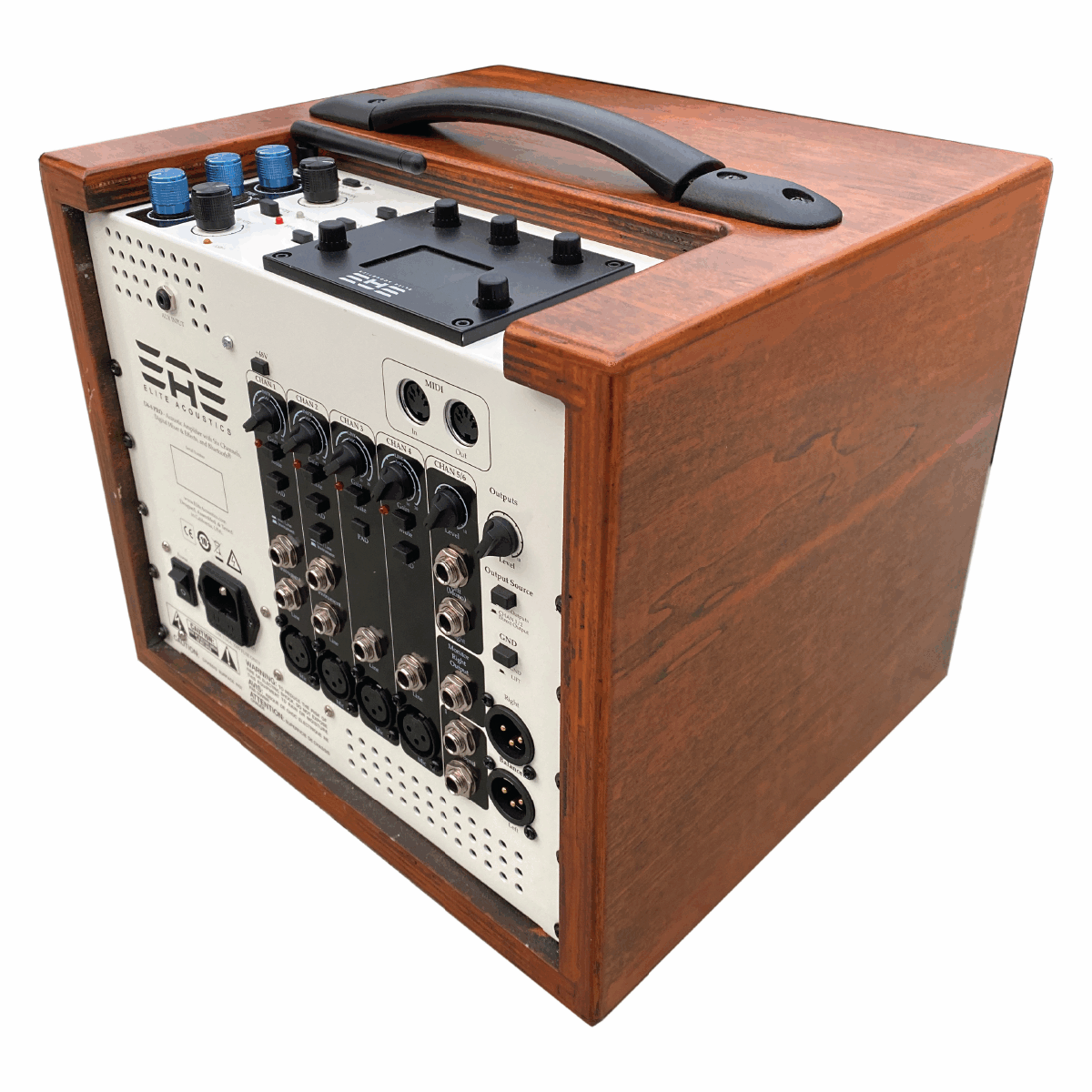

Elite Acoustics D6-8
1.059,00 €
incl. 19% VAT
incl. 19% VAT
- Wooden housing
- Speaker 8″ woofer and 1″ tweeter
- Frequency response 40 Hz -22 kHz
- Power amplifier Class D bi-amping (40 watts)
- Power supply integrated rechargeable battery (battery life: 6-8 hours) or 12 V DC, 5000 mA
- Displays (LED) power, phantom power, signal/peak (master), Bluetooth (pairing & mode), battery charge level
- LCD menus Main, Channel EQ, Output EQ, Aux Mix, Aux Pan, Effect Sends, Effect Parameter, Input Level, Inserts, Routing,
- Scene memory (Save&Recall)
- Dimensions (WDH) 27.7 x 26.1 x 41.7 cm
- Weight 12.7 kg
- Channel 1 and 2 Gain
- Mute, PAD, Mic/Line – Instr switch
- Channel 3 Gain
- Mute switch, PAD
- Channel 4 Gain control, mute switch
- Channel 5/6 Volume
- Phantom power 48 V, switchable (common for CH1-CH4)
- Channel 1 and 2 XLR (Mic), 6.35 mm jack (Line/Instrument)
- Channel 3 and 4 XLR (Mic), 6.35 mm jack (Line)
- Channel 5/6 stereo input (L/R), 2x 6.35 mm jack
- AUX-In 3.5 mm stereo jack
- Aux sends 2x 6.35 mm jack (send 1, send 2) with master send control
- Outputs 2x XLR (L/R) with volume control, 6.35 mm jack (monitor R)
- MIDI In/Out (each 5-pin DIN)
You may also like…
Safety instructions and warnings
Specific safety instructions that apply to the product can be found in the operating instructions for the product.
Disposal Instructions
Passive electric guitars and basses, their cases, and other accessories must be disposed of separately from unsorted household waste or municipal waste at recycling centers or waste collection points for environmentally friendly disposal. For instruments with active electronics, i.e., those powered by batteries or even phantom power, the instructions for the disposal of electrical devices based on the Electrical and Electronic Equipment Act (ElektroG) apply.
